Our Products - RTPi Real-Time Simulator

Overview

The RTPi boasts a high-performance quad-core ARM CPU with a maximum clock speed of 1.8 GHz. It facilitates the rapid development of control algorithms and models using MATLAB Simulink, enabling seamless one-click downloads without the need for compilation. Leveraging world-leading numerical algorithms and bare-metal CPU technology, the RTPi delivers real-time simulations with step sizes as small as 20 μs and supports complex systems comprising up to 300 switching elements.

Product Highlights

• 20μs: Achieve ultra-high-frequency real-time simulation with a minimum step size of 20 microseconds through advanced numerical algorithms and bare-metal CPU technology.
• Scalable Simulation: Expand simulation scales conveniently through the distribution and parallelization of calculations.
• Seamless, Realistic Simulation: Supports real-time model insertion without disturbance to ensure realistic simulations.

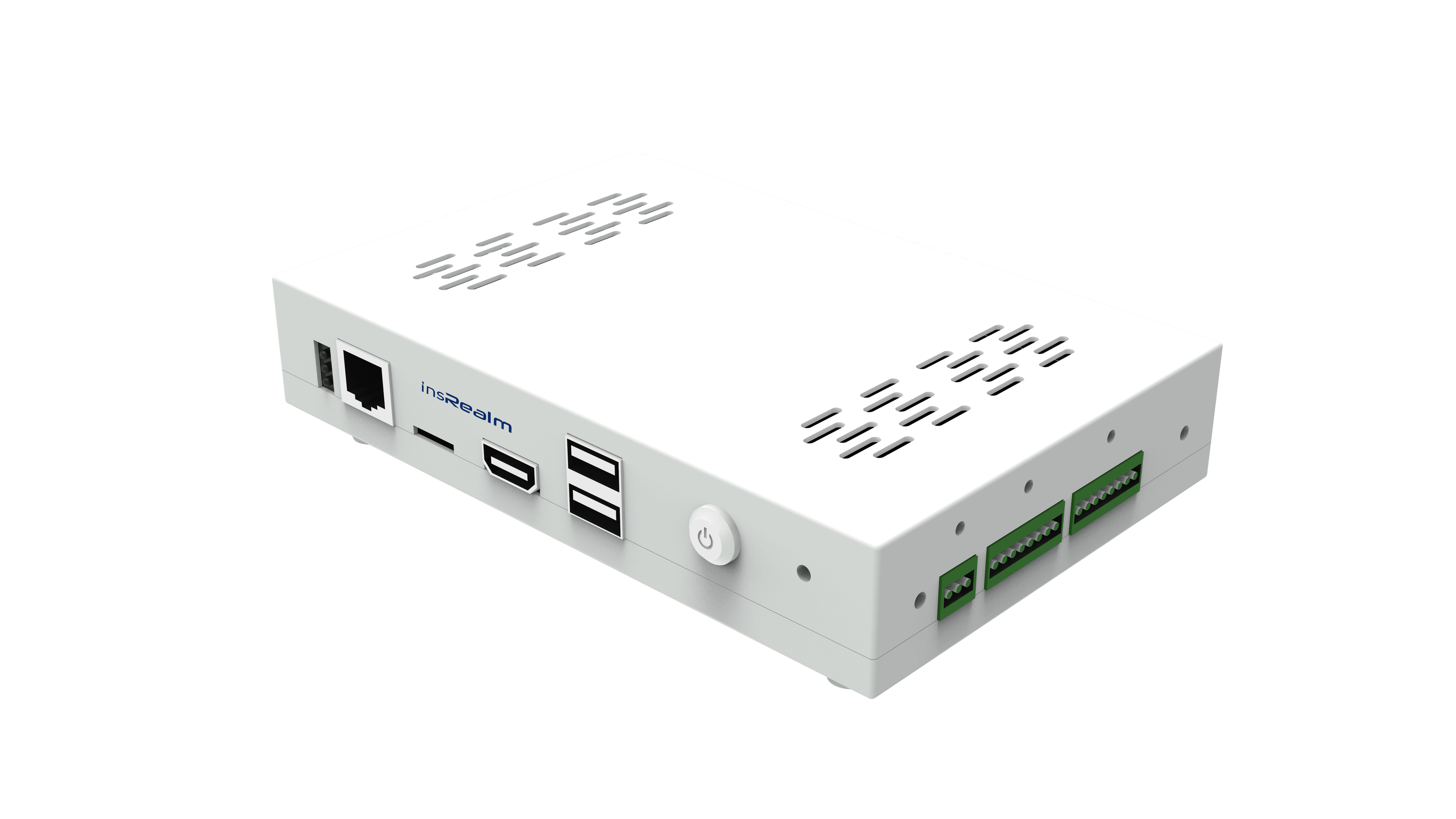

• Compact Dimensions: 233x177x25mm, fulfilling customized application requirements with a small footprint.
• One-click Download, Real-time Monitoring, Online Adjustment: Integrated with MATLAB/Simulink, the product allows for one-click downloading, real-time monitoring, online parameter adjustments, and efficient debugging.

Application Scenarios

1. High-speed Motor Simulation: Suitable for ultra-high-speed motor simulations, ensuring stable operation in systems with bandwidths exceeding 100kHz. The system can solve the problem of simulation at high frequency and offers solutions for a wide range of applications.
2. Wind and Solar Power Storage Stations: Simulate the complex interaction between wind, solar, and storage systems, ensuring comprehensive fault analysis, grid-connected analysis, and optimization of energy use.
3. Hybrid Transmission Systems: Applicable for hybrid transmission systems combining mechanical, electrical, and electronic components. The system offers robust simulation capabilities for mixed-signal environments.
4. Electrified Transportation Systems: For cars, ships, and aircraft, the simulator offers comprehensive system simulation, providing real-time test and verification for electrified and hybrid propulsion systems.

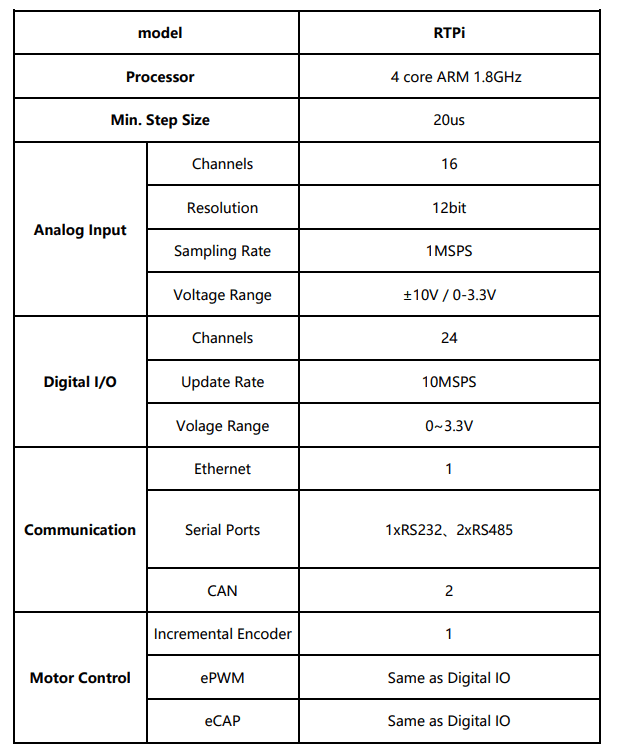

Hardware Parameters
